Paint Spray Imaging

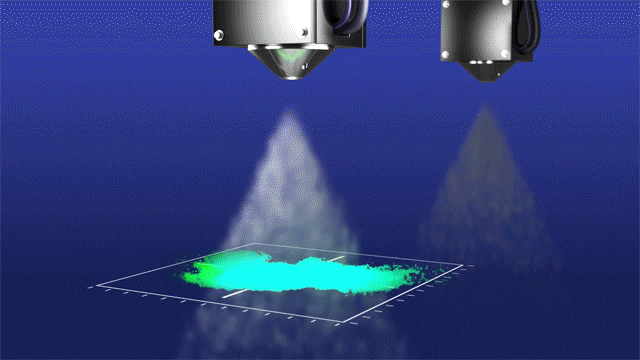

Paint spray applications require a tightly toleranced spray pattern to produce homogeneous and constant thickness spray coatings. LaVision's SprayMaster imaging systems provide information on all relevant spray parameters individually optimized for paint spray applications such as spray pattern and spray plume geometry. Production lines equipped with LaVision's in-line testing SprayMaster inspex ensures highest quality in factories around the world.

no-img

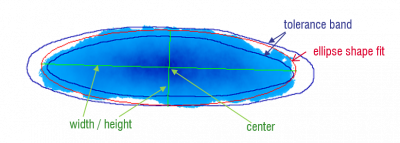

Spray pattern inspection plotted with acceptance tolerance band
Spray Pattern Quality
  • dimension (width, height)
  • position (center, rotation)
  • uniformity
  • comparison to reference pattern

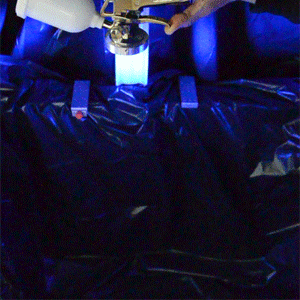

SprayMaster inspex in production line
