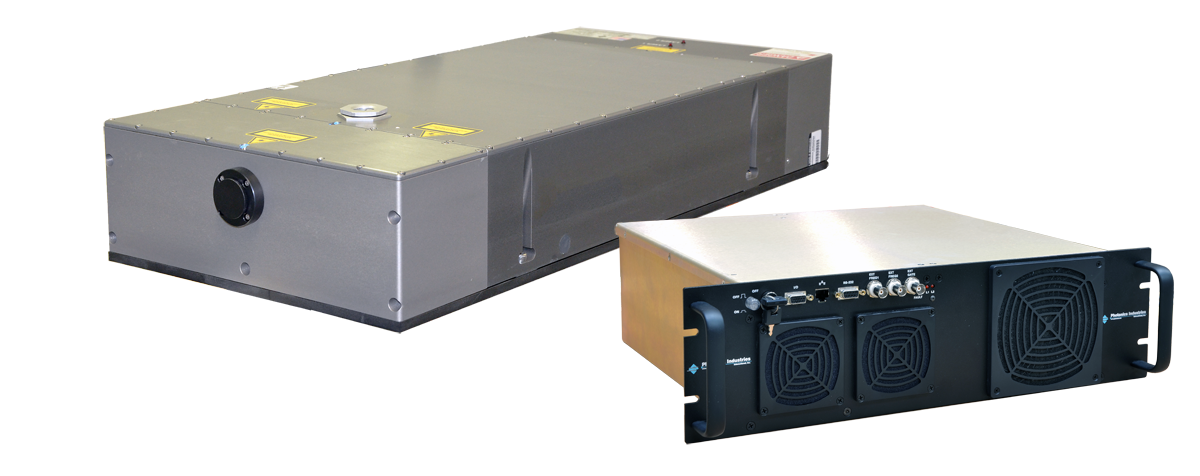

PIV Lasers

LaVision offers state-of-the-art dual cavity Nd:YAG lasers (532 nm) and Nd:YLF lasers (527 nm) for PIV applications. For the different measurement tasks a wide range of output energies up to 400 mJ per pulse are available.

Rates around 15 Hz are used for most liquid and air-based PIV applications. Repetition rates around 50, 100 and 200 Hz are best matched for time-resolved measurements, for instance in water.

Lasers at high repetition rates > 1kHz can provide pulse energies up to 100 mJ and max. repetition rates up to several kHz for air or water applications.

For Laser Induced Fluorescence (LIF) and other related applications, 266 nm or 355 nm output options are available for most of the PIV lasers.

All LaVision lasers undergo a detailed in-house incoming test procedure and every unit is delivered with a dedicated test protocol that proves the main specification of the laser unit.

Our various optics for sheet and volume illumination as well as an articulated arm can easily be attached to the laser heads and offer easy and safe operation of the lasers.

In our online-shop you can order consumables for our lasers.

Overview

PIV Laser PIV Laser

  PIV laser Pulse energy@532 nm Repetition rate Beam diameter Pulse length

NS 30-15 2 x 30 mJ 0-15 Hz 3 mm 5-8 ns
NS 65-15 2 x 65 mJ 0-15 Hz 4 mm 6-8 ns
NL 145-15 2 x 145 mJ 0-15 Hz 5 mm 6-9 ns
NL 200-15 2 x 200 mJ 0-15 Hz 6.5 mm 6-9 ns

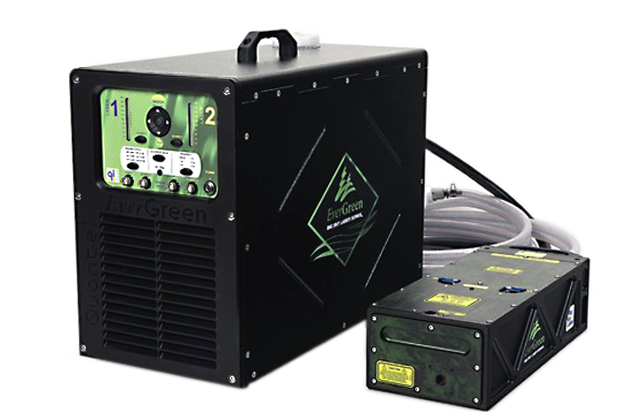

Evergreen 70 2 x 70 mJ 0-15 Hz < 5 mm %%le%% 10 ns
Evergreen 145 2 x 145 mJ 0-15 Hz < 6.35 mm %%le%% 10 ns
Evergreen 200 2 x 200 mJ 0-15 Hz < 6.35 mm %%le%% 10 ns

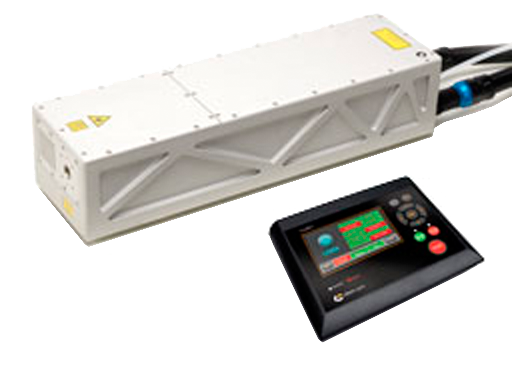

Bernoulli 145-15 2 x 145 mJ 0-15 Hz < 6.35 mm %%le%% 10 ns
Bernoulli 200-15 2 x 200 mJ 0-15 Hz < 5 mm %%le%% 10 ns
Bernoulli 100-25 2 x 100 mJ 0-25 Hz < 5 mm %%le%% 10 ns
Bernoulli 100-50 2 x 100 mJ 0-50 Hz < 4 mm 5-8 ns
Bernoulli 50-100 2 x 50 mJ 0-100 Hz < 4 mm 5-8 ns

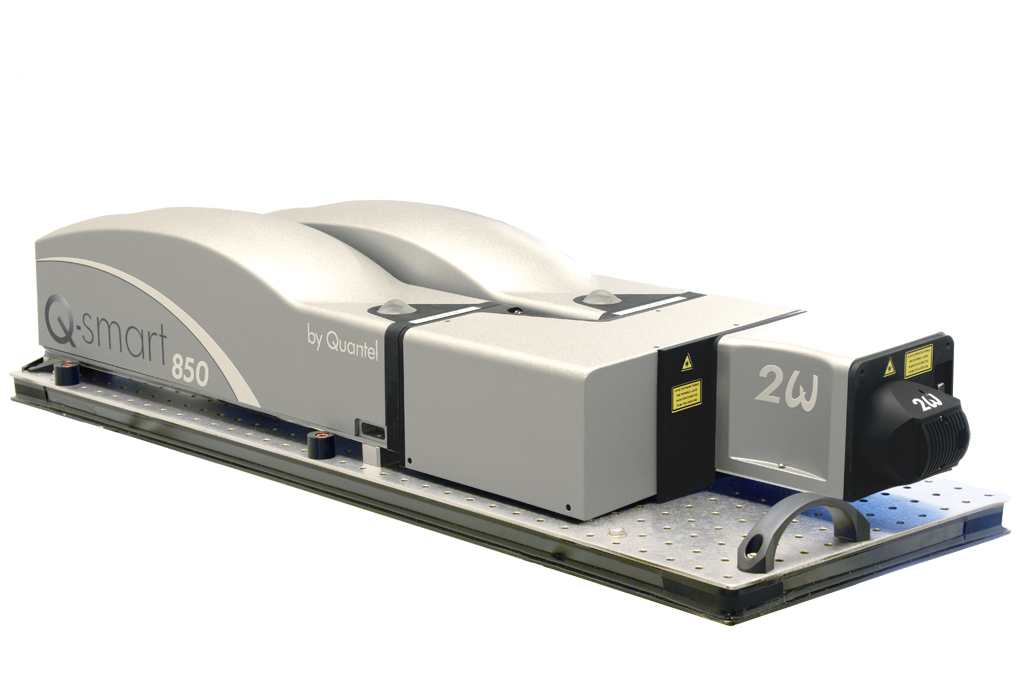

  Q-smart Twins 850 2 x 380 mJ 10 Hz 9 mm ~ 5 ns

Evergreen HP 10-370 2 x 370 mJ 10 Hz < 10 mm < 10 ns
Evergreen HP 15-340 2 x 340 mJ 15 Hz < 10 mm < 10 ns
High-Speed PIV Laser High-Speed PIV Laser
  High-speed PIV laser Pulse energy Repetition rate Beam diameter Pulse length

DM20-527-DH 2 x 20 mJ@1kHz single shot to 10 kHz 5 mm ~170 ns
DM20-527-DH HP 2 x 22.5 mJ@1kHz single shot to 10 kHz 5 mm ~170 ns
DM30-527-DH 2 x 30 mJ@1kHz single shot to 10 kHz 5 mm ~150 ns
DM40-527-DH 2 x 40 mJ@1kHz single shot to 10 kHz 5 mm ~130 ns
DM50-527-DH 2 x 50 mJ@1kHz single shot to 10 kHz 5 mm ~120 ns
DM60-527-DH 2 x 60 mJ@1kHz single shot to 10 kHz 5 mm ~120 ns
DM100-527-DH 2 x 100 mJ@1kHz 0.5-10 kHz 7 mm ~120 ns

LD10 2 x 10 mJ@1kHz 0.2-20 kHz 5 mm <120 ns
LD15 2 x 15 mJ@1kHz 0.2-20 kHz 5 mm <120 ns
LD20 2 x 20 mJ@1kHz 0.2-20 kHz 5 mm <120 ns
LD25 2 x 25 mJ@1kHz 0.2-20 kHz 5 mm <120 ns

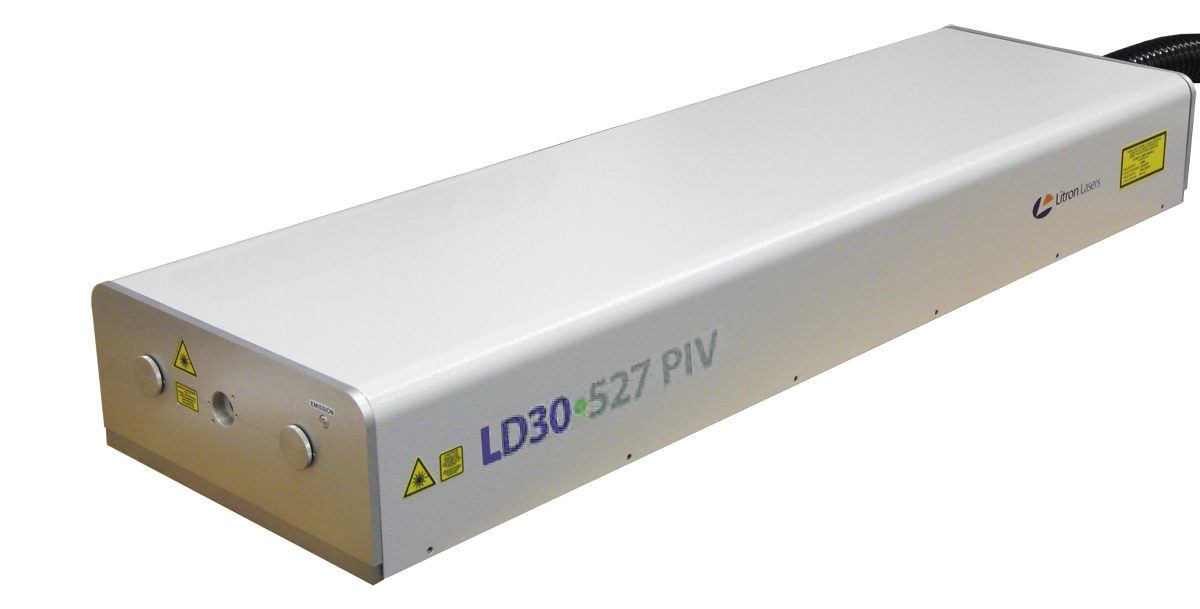

LD30 2 x 30 mJ@1kHz 0.2-20 kHz 5 mm <120 ns
DM60-532-DH 2 x 6 mJ@10kHz 1-30 kHz 3 mm ~190 ns
DM100-532-DH 2 x 10 mJ@10kHz 1-30 kHz 3 mm ~130 ns
DM150-532-DH 2 x 15 mJ@10kHz 1-50 kHz 3 mm ~200 ns
DM200-532-DH 2 x 20 mJ@10kHz 1-50 kHz 4.5 mm ~110 ns
